A powerhouse heavyweight in excellent original condition

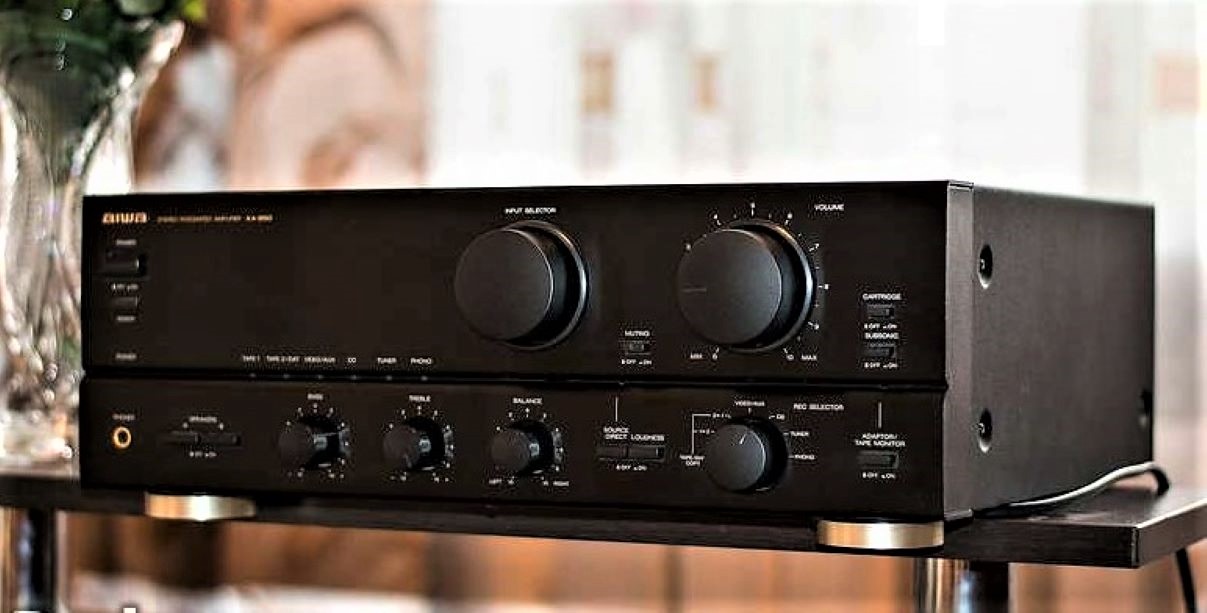

AIWA XA-950 *SOLD*

SPECIFICATIONS

• Manufacturer: Aiwa
• Model: XA-950
• Type: Integrated amplifier
• Years of construction: 1992 – 1998
• Color: Black
• Power consumption: 300 W max.
• Dimensions: 430 x 140 x 340 mm (WxHxD)
• Weight: 10.5 k

connections

• Number of inputs: 6
  • 1 PHONO (MM; MC) (2.5 mV / 47 kOhm; 0.2 mV / 100 Ohm)
  • 1 TUNER (150 mV / 47 kOhm)
  • 2 TAPE / DAT (150 mV / 47 kOhm)
  • 1 AUX (150 mV / 47 kOhm)
  • 1 CD (150 mV / 47 kOhm)
  • [1 ADAPTER (150 mV / 47 kOhm)]

• Number of outputs: 5
  • 2 TAPE / DAT (150 mV / 47 kOhm)
  • 1 headphone (8 ohms – 32 ohms)
  • 2 pairs of speakers (A / B 4 ohms – 16 ohms; A + B 8 ohms – 16 ohms)
  • [1 ADAPTER (150 mV / 47 kOhm)]

Technical specifications

• Continuous output (with distortion factor)
  • 8 ohms: 2 x 100 W (0.9%, 1 kHz)
  • 4 ohms: 2 x 150 W (0.9%, 1 kHz)
• Dynamic performance
  • 8 ohms:
  • 4 ohms:
• Total Harmonic Distortion: 0.005% (20 Hz – 20 kHz, 75 W, 8 Ohm)
• Power bandwidth (both channels controlled, 8 ohms): 5 Hz – 70 kHz (less than 0.05%)
• Frequency response: 5 Hz – 150 kHz (+0 dB / -1 dB)
• Signal-to-noise ratio:
  • PHONO MM 95 dB (5 mV input)
  • PHONO MC 75 dB (0.5 mV input)
  • TUNER, CD, VIDEO / AUX, TAPE / DAT, ADAPTER 110 dB
• Tone control:
  • Bass: yes
  • Treble: yes
• Loudness: yes
• High filter: no
• Low Filter (Subsonic): yes, 16 Hz (-12 dB / Oct)
• Mute: yes
• Direct / Line-Straight: yes

Special equipment

• Separable output stage via ADAPTER IN / OUT
