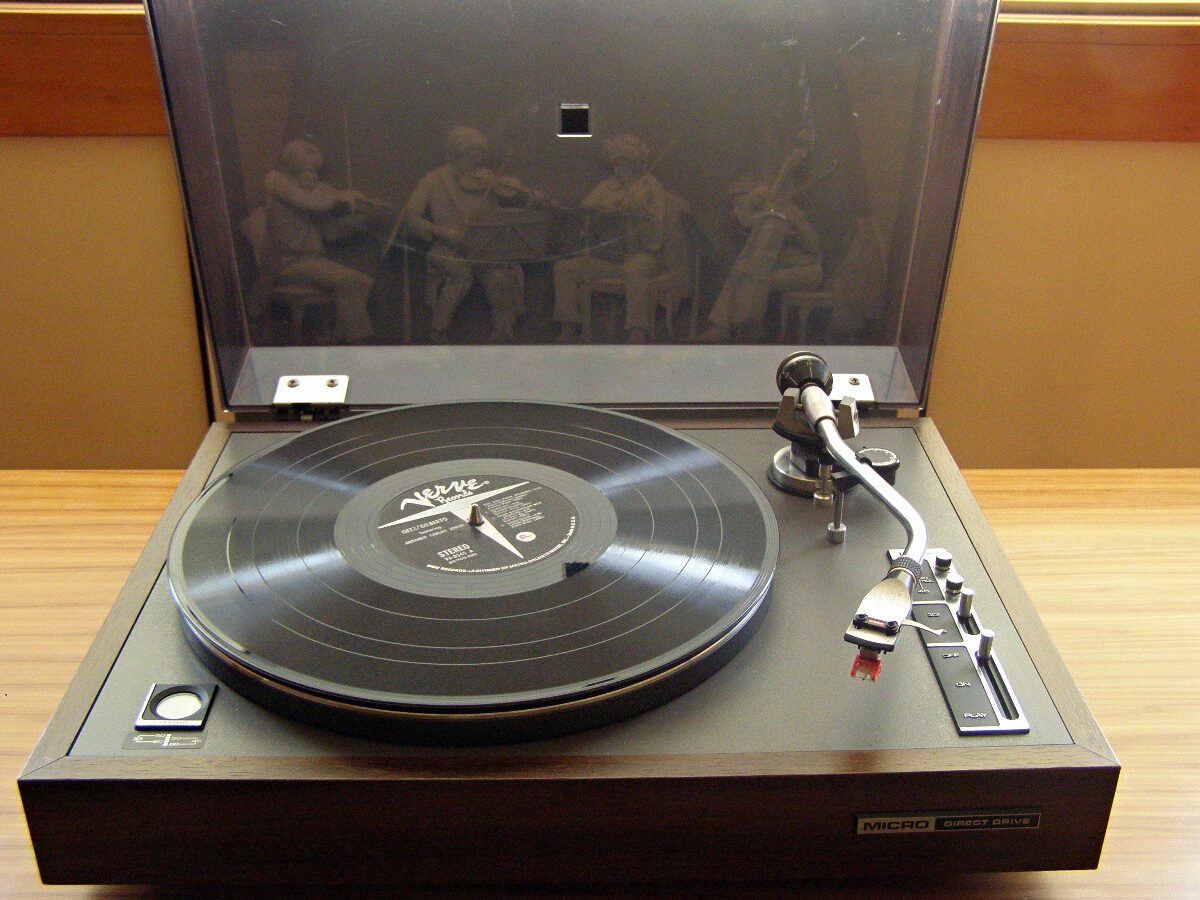

From one of Japans leading turntable manufacturers *SOLD*
The DD1 is built to the highest quality
Fitted with a Micro Seiki VF-32oo Stereo Moving-Magnet Phono Cartridge
These models are completely undervalued today. But considering the sheer sound quality, they are all outstanding devices of their kind. All have in common extremely well regulated engines. Both in the Belt Drive models, as well as the direct drives. This even quartz stabilized with wow and flutter below 0.03%. The engines Matsushita or Fujiya Audio have been used in general. The chassis are almost always closed from wood. built up. With the ADC variants, Micro has developed a new plastic honeycomb system with foam damping. Its own is an excellent decoupling between tonearm and plate bearing. This is accompanied by a very low-rumble, yet very deep reproduction. All chassis are equipped with good absorber feet. This concept has virtually invented Micro-Seiki! At any rate, they were the first to offer this concept in series. Even today’s common “Absorber Feet” is an invention of Micro-Seiki, who would have thought it …. Its characteristic high quality S-tonearm almost always has an open-topped “U” as the main bearing
Drive system | Direct-drive scheme |
Motor | 8 pole 24 slot DC servo motor |
Rotational frequency | 33 1 / 3 or 45rpm |
Rotational frequency fine-adjustment span | It is }6% to a convention velocity. |
Turntable | The product made from 30cm aluminum die-casting, 1.2kg |
Rotation unevenness | 0.045% or less |
S/N ratio | 55dB or more |
<Tone arm part> | |
Form | Static balance type |
Effective length | 222mm |
Overhang | 15mm |
Conformity cartridge self-weight | 4g-11g |
Stylus-force variable span | 0-3g (one rotation) |
Power source | AC240V, 50Hz/60Hz |
Power consumption | 5.4W |
Dimensions | Width 449x height 150x depth of 340mm |
Weight | 8.2kg |
