*SOLD* A highly regarded modern day classic

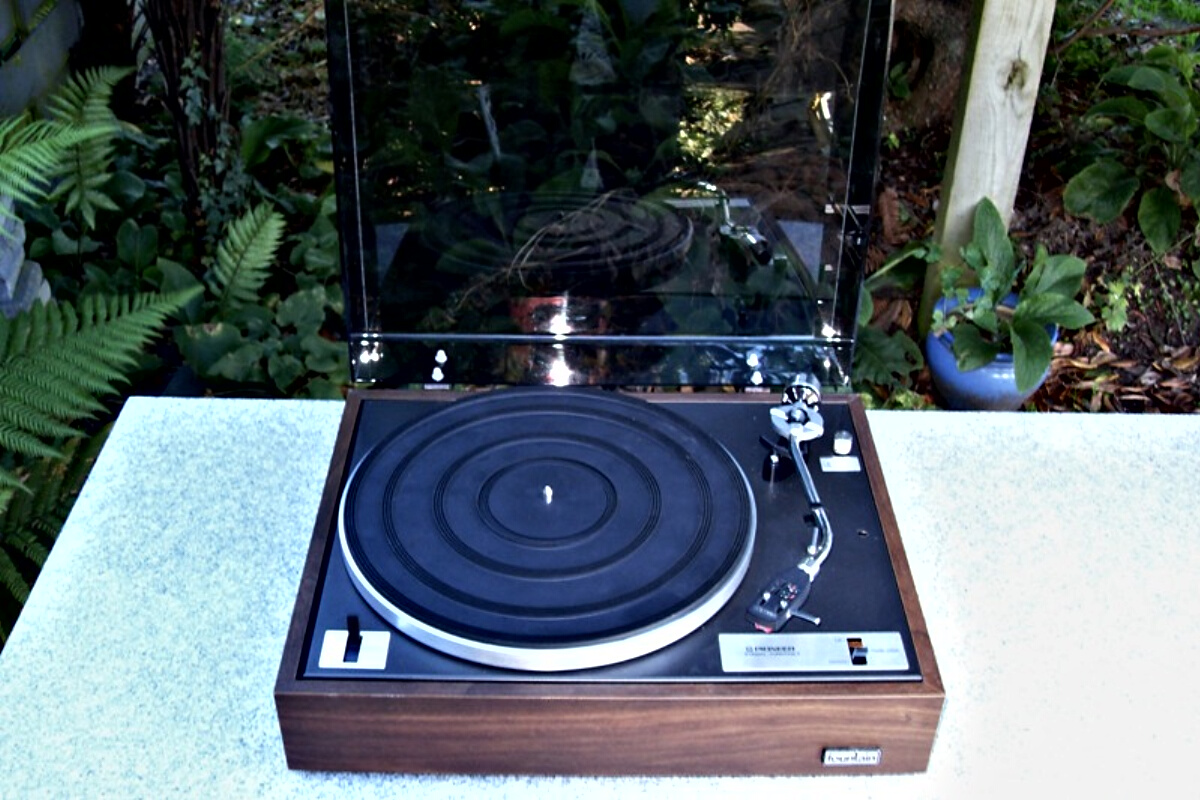

A high fidelity turntable featuring simple, fool-proof operation.
The easy-operation PL-12 stereophonic turntable combines all the quality features you need for true hi-fi disc reproduction – the finest hysteresis synchronous motor eliminating audible wow and flutter), and an extremely steady, reliable belt-drive. Plus an improved head-shell that allows for easy cartridge changing, an oil-damped tonearm elevator that treats your records ever so gently, operated by a simple lever that raises and lowers the beautifully balanced tonearm. Simple selection of either 33 ⅓ or 45 rmp, too
Specification
Motor: 4-pole hysteresis synchronous motor
Drive System: Belt-driven
Speed: 33 ⅓ and 45 rpm
Turntable Platter: 12″ aluminium alloy die-cast turntable
Signal-to-Noise Ratio: better than 45 dB
Wow and Flutter: less than 0,12% (WRMS)
Tonearm: Static-balanced type
Cartridge: PC-11 (moving magnet Type)
Stylus: PN-11 (0,6 mil dimond)
Frequency Response: 15 – 20,000 Hz
Separation: better than 25 dB (1 kHz)
Load Impedance: 50 – 100 k Ω (1 kHz)
Compliance: 10 x 10¯³ cm/dyne (100 Hz)
Stylus Pressure: 2,5 to 3,5 grams
Output Voltage: 5 mV (1 kHz, 50 mm/sec.)
Power Requirements: 110 – 130 V, 220 – 240 V, AC 50/60 Hz
Power Consumption: 18,5 VA (12 W)
Dimensions (W x H x D): 431 x 153 x 341 mm (17″ x 6″ x 13 ½“)
Weight: 6,1 kg (13,4 lbs)
