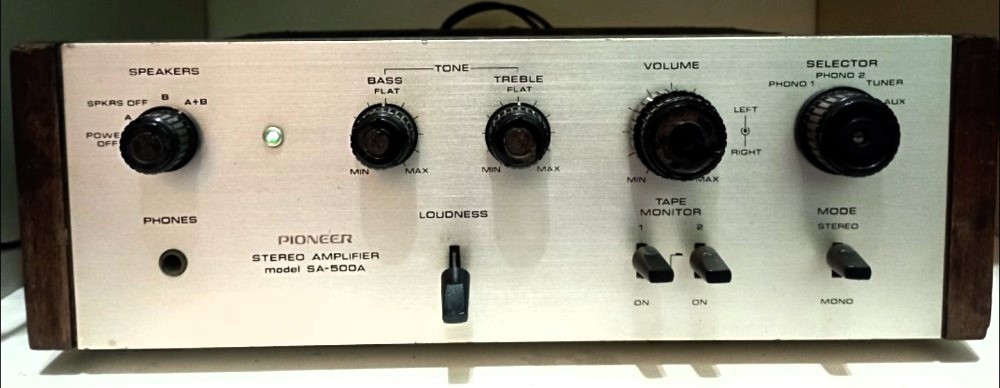

Pioneer SA-500A Integrated amp

The baby of this highly regarded series. Fitted with timber end panels. Working 100%. Note silver caps missing from volume and selector knobs,cosmetic only
Circa 1973. Very collectable

Specifications
Power output: 13 watts per channel into 8Ω (stereo)

Frequency response: 30Hz to 50kHz

Total harmonic distortion: 0.5%

Damping factor: 40

Input sensitivity: 2.5mV (MM), 200mV (line)

Signal to noise ratio: 75dB (MM), 90dB (line)

Channel separation: 50dB (MM), 55dB (line)

Output: 200mV (line)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 18 x transistors, 6 x diodes

Dimensions: 330 x 118 x 316mm

Weight: 5.5kg

Price: $ 380.00
