A timeless classic

Description  *SOLD*

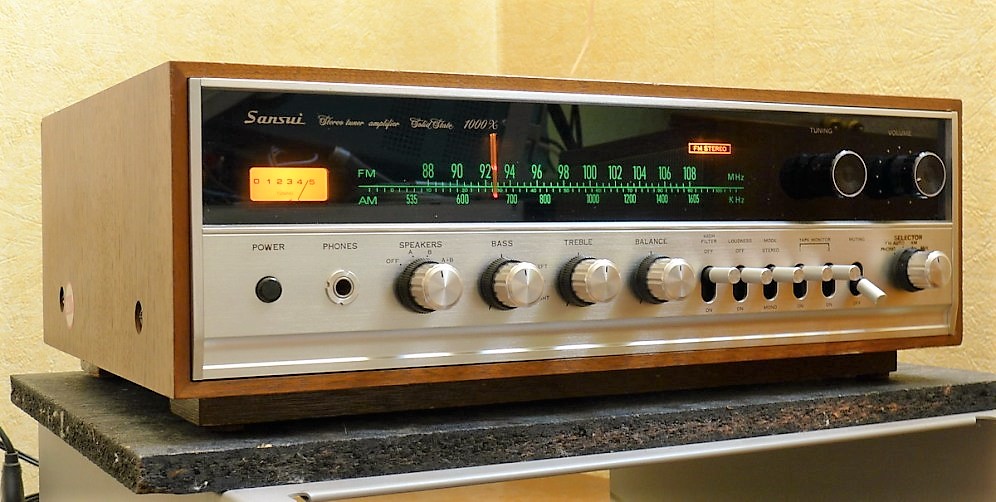

Sansui has spared no effort in making the 1000X the most powerful, versatile and sophisticated receiver available at the price.

With an unprecedented 100 watts power, the latest FET components, functional front panel design and an ability to handle two speaker systems, the 1000X considerably advances the art of stereophonic reproduction.

Specifications

Tuning range: FM, MW

Power output: 28 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 30kHz

Total harmonic distortion: 0.8%

Damping factor: 30

Input sensitivity: 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 70dB (MM), 75dB (line)

Channel separation: 50dB (MM), 50dB (line)

Output: 160mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 1 x FET, 45 x transistors, 22 x diodes

Dimensions: 416 x 145 x 300mm

Weight: 10.3kg

Year: 1970
