TECHNICAL SPECIFICATIONS  *SOLD*

Speaker Drive Units:
Treble Horn Unit: ET/02/1
Dimensions: 70 mm Diameter
Normal Impedance: 8 ohms
Sensitivity: 98 dB at 1m for 2.83 V
Freq. Range: 5 kHz – 18 kHz
Power Handling: 14O W (DIN) / 200 W (music power)

Mid-Range Unit: EM/10/1
Dimensions: 112 mm Diameter
Normal Impedance: 8 ohms
Sensitivity: 94 dB at 1m for 2.83 V
Freq. Range: 800 Hz – 5 kHz
Power Handling: 70 W (DIN) / 110 W (music power)

Bass Unit: EB/25/1
Dimensions: 243 mm Diameter
Normal Impedance: 8 ohms
Sensitivity: 95 dB at 1m for 2.83 V
Freq. Range: 40 Hz – 1.5 kHz
Power Handling: 70 W (DIN) / 110 W (music power)

Crossover Network:
Type: EDN1 System E50
Power Handling: 70 W (DIN) 100 W (music power)
Dividing Freq.: 800 Hz & 7 kHz

Cabinet Dimensions:
h x w x d: (665 x 342 x 322) mm / (26.2 x 13.5 x 12.7) in.
Total Mass: ~25 kg

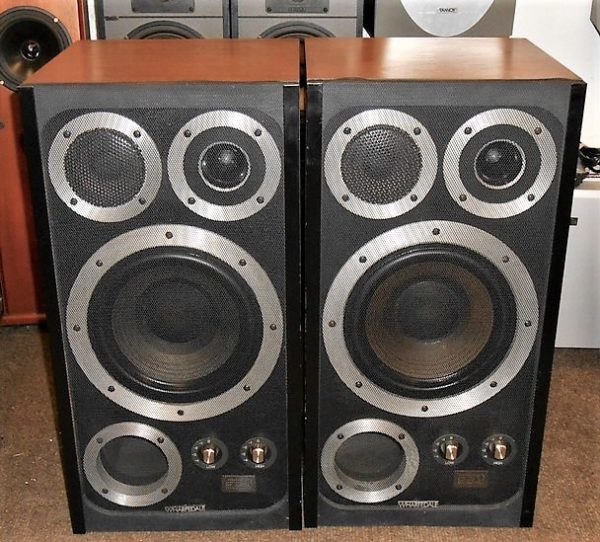

The E50 is deceptively quick and loud in motion, exuding genuine confidence and bravery. Give it jazz, rock, soul, it is a boogie master!

It captures the music’s energy and pace in a manner that BBC-style speakers can never. Drums have a lot of attack and weight, basslines are rapid and lively, voices are boldly thrust out into the room, and cymbals smack you in the face. Chic’s Le Freak is never going to sound the same!
