*SOLD*

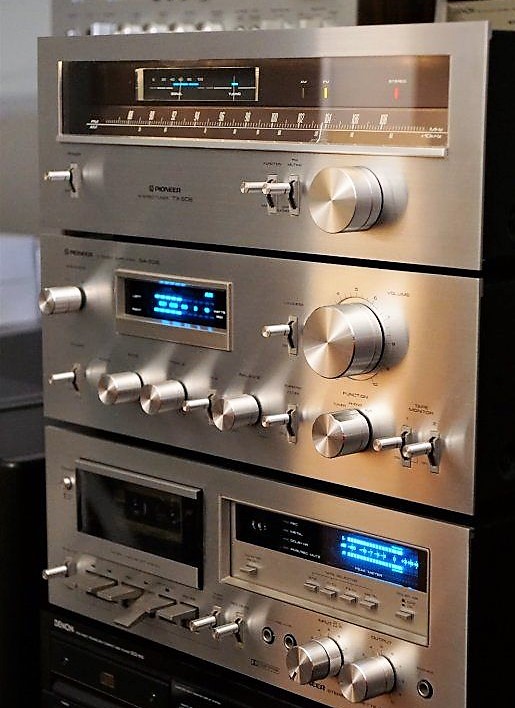

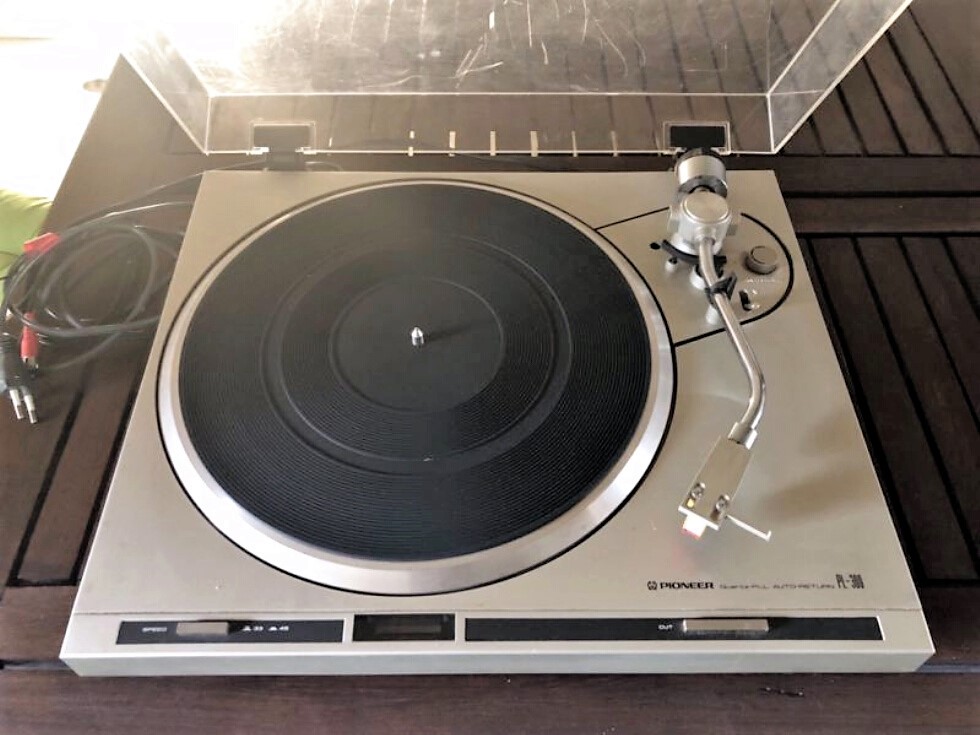

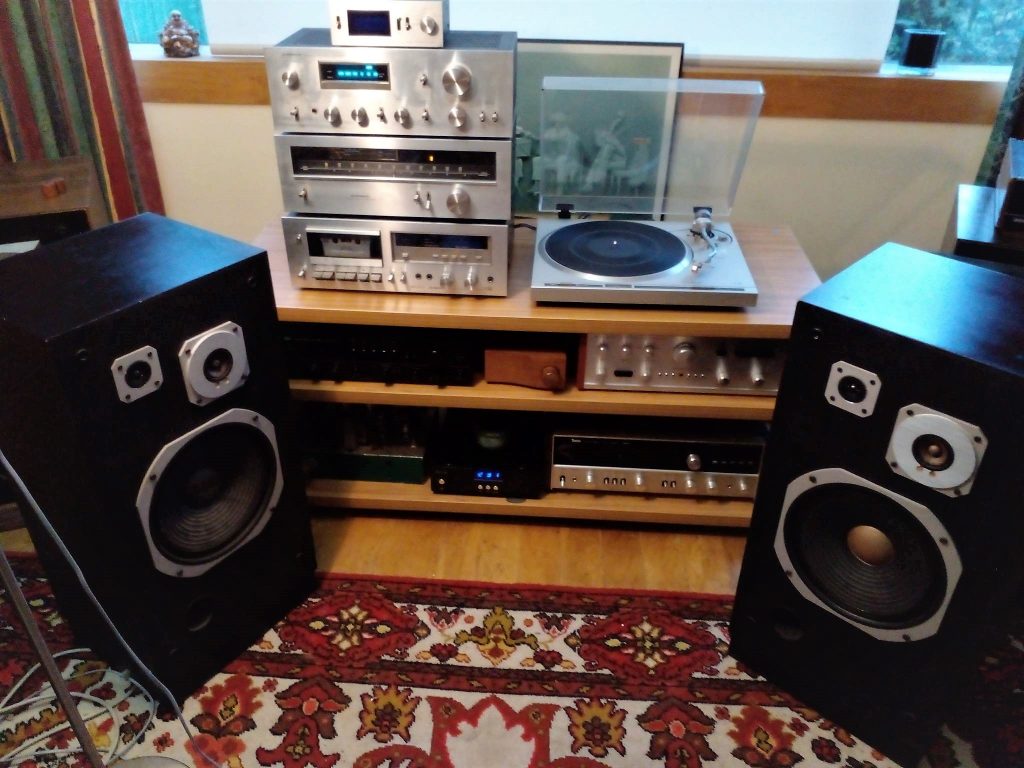

One owner. Purchased new in the 80s.Pic of Speakers and turntable below .Have added Pic of complete system with Pioneer DT 400 Timer on top
System comprises
Pioneer SA 608 Amplifier
Specifications
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 50kHz
Total harmonic distortion: 0.02%
Damping factor: 30
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MM), 100dB (line)
Output: 150mV (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 7 x IC, 23 x transistors, 17 x diodes
Dimensions: 451 x 151 x 271mm
Weight: 8.3kg Year: 1979.
*Pioneer TX-608 Tuner
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
Sensitivity: 1.9uV (FM), 300uV (MW)
Signal to Noise Ratio: 74dB (FM), 50dB (MW)
Distortion: 0.15% (FM)
Selectivity: 60dB (FM), 35dB (MW)
Frequency response: 20Hz to 15kHz (FM)
Output: 650mV (FM)
Semiconductors: 3 x IC, 1 x FET, 8 x transistors, 15 x diodes
Dimensions: 451 x 151 x 284mm
Weight: 5.3kg
Year: 1980
CT-F650, Cassette Deck
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x DC servo
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 18kHz (Metal tape)
Signal to Noise Ratio: 69dB (dolby B)
Wow and Flutter: 0.05%
Dimensions: 16-9/16 x 5-7/8 x 13-1/4 inches
Weight: 15.75lbs
Year: 1980
PL-300 Turntable
Specifications
Type: direct drive
Motor: quartz PLL stable hanging rotor hall motor
Speeds: 33 and 45rpm
Wow and flutter: 0.025%
Rumble: 75dB
Tonearm: static-balanced type, s-shaped pipe arm
Effective length: 221mm
Overhang: 15.5mm
Cartridge weight range: 4 to 9g
Dimensions: 420 x 96 x 360mm
Weight: 6.5kg
*CS-608 Speakers .3 Way system
10 inch woofer 2inch upper/mid 1.5inch tweeter
Dimensions 76H x 300d x 360w
Frequency Response: 35Hz to 20kHz
Power Handling: 80 Watts
Impedance: 8Ω
Sensitivity: 92dB/W/m
Price: | $ 1,480.00 |
